  • ΔΙΑΘΕΣΙΜΟΤΗΤΑ: 1-3 Εργάσιμες
  • ΚΩΔΙΚΟΣ: 131132
  • Βάρος: 500.00g
Cubalux Cubalux
Σύμφωνα με 0 αξιολογήσεις. - Γράψτε μια αξιολόγηση
52,00€
Χωρίς ΦΠΑ: 41,94€
Καλάθι
Επιθυμητό Σύγκριση
'Η
'Η

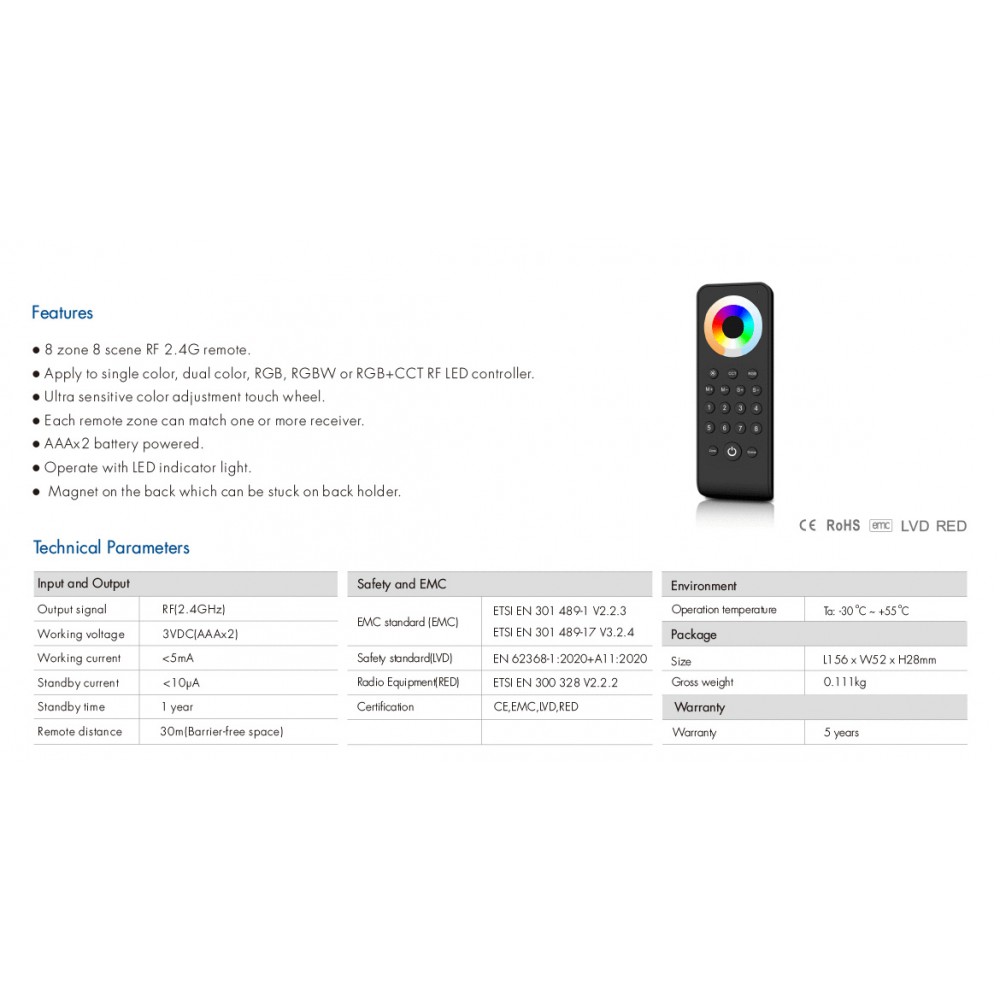

Features
8-zone, 8-scene RF 2.4G remote.

Compatible with single color, dual color, RGB, RGBW or RGB+CCT RF LED controllers.

Ultra-sensitive color adjustment touch wheel.

Each remote zone can be matched with one or more receivers.

Powered by 2×AAA batteries.

Operates with LED indicator light.

Magnetic back for mounting on back holder.

Certifications: CE, RoHS, EMC, LVD, RED

Technical Parameters
Input and Output
Working voltage: 3V DC (AAA×2)

Working current: <5mA

Standby current: <10μA

Standby time: 1 year

Remote distance: 30m (barrier-free space)

Safety and EMC
Safety standard (LVD): EN 62368-1:2020 + A11:2020

EMC standard (EMC):

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-17 V3.2.4

Radio Equipment (RED): ETSI EN 300 328 V2.2.2

Environment
Operation temperature (Ta): -30℃ ~ +55℃

Output signal: RF (2.4GHz)

Package
Size: L156 × W52 × H28 mm

Gross weight: 0.111kg

Warranty: 5 years

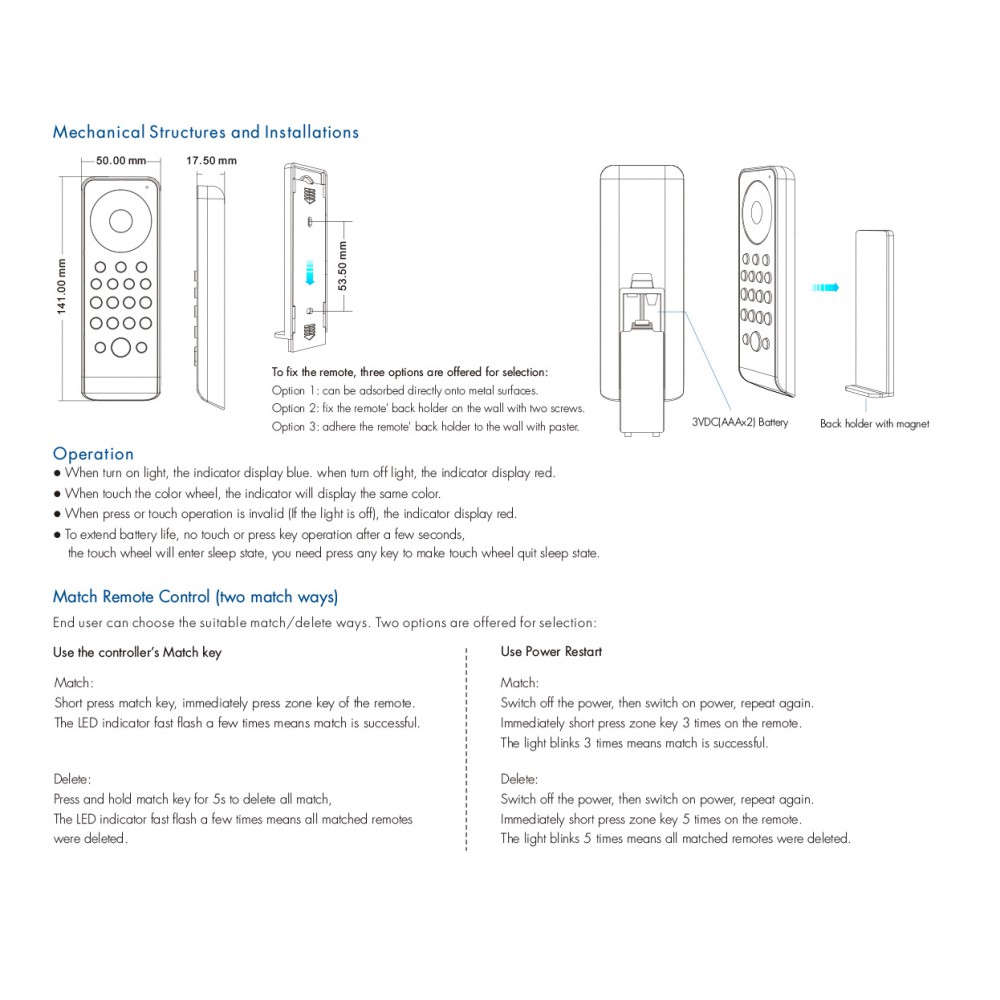

Mechanical Structure & Installation
Battery: 3V DC (AAA×2)

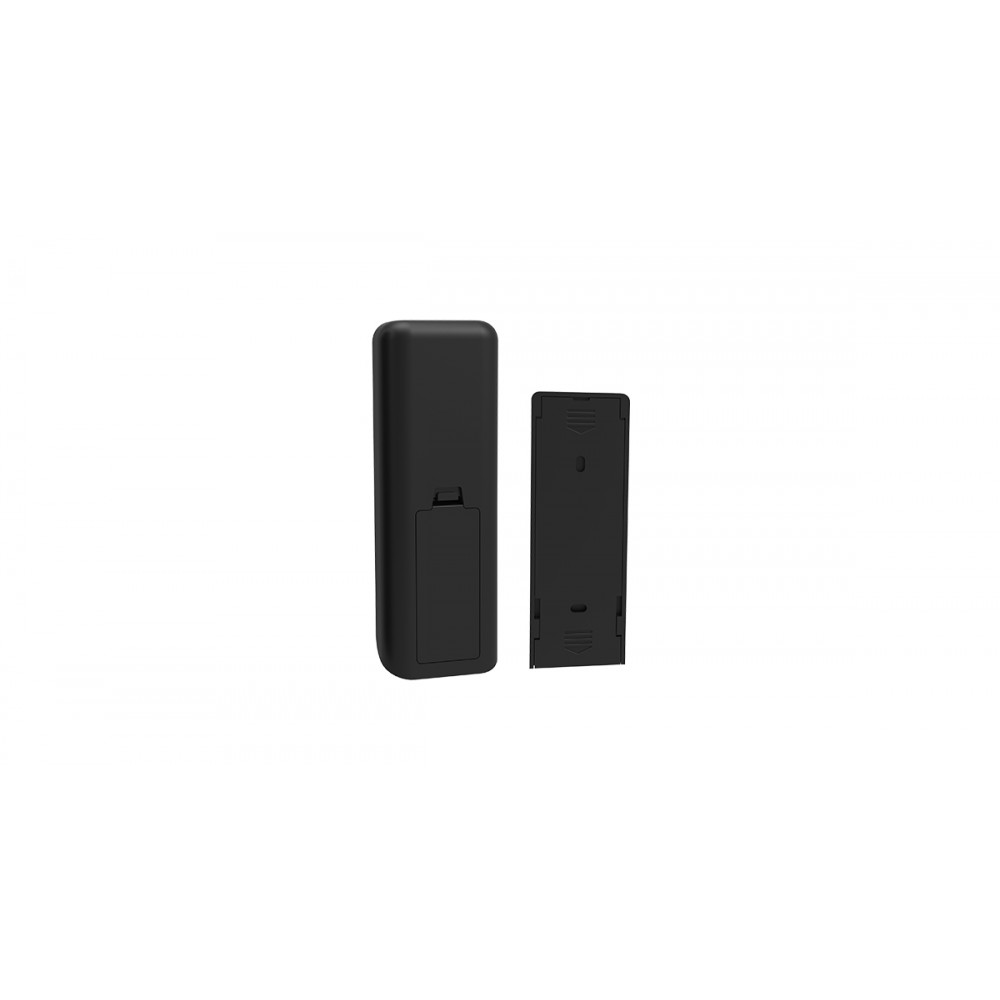

Back holder with magnet

Three mounting options:

Attach directly to metal surfaces (magnetic).

Fix the remote’s back holder to the wall with two screws.

Stick the back holder to the wall using adhesive plaster.

Operation Instructions
When turning the light on, the indicator displays blue.

When turning the light off, the indicator displays red.

When touching the color wheel, the indicator displays the selected color.

If a press or touch operation is invalid (e.g., light is off), the indicator displays red.

To extend battery life, the touch wheel enters sleep mode after a few seconds of inactivity. Press any key to wake it up.

Match Remote Control (Two Matching Methods)
End users can choose between the following two ways to match or delete the remote control:

1. Use the Controller's Match Key
Match:

Short press the match key.

Immediately press the desired zone key on the remote.

LED indicator flashes quickly a few times → Match successful.

Delete:
Press and hold the match key for 5 seconds.
LED indicator flashes quickly a few times → All matched remotes deleted.

2. Use Power Restart Method
Match:
Switch power off, then on, repeat once.
Immediately short-press the desired zone key 3 times on the remote.
Light blinks 3 times → Match successful.

Delete:
Switch power off, then on, repeat once.
Immediately short-press the desired zone key 5 times on the remote.
Light blinks 5 times → All matched remotes deleted.
