ΕΛΕΓΚΤΗΣ LED 5 ΣΕ 1 SPI DMX WIFI 2.4G ACA A-SPIW5 IP20 MiLight

ΤΟ ACA A-SPIW5 ΕΙΝΑΙ ΕΝΑΣ ΕΛΕΓΚΤΗΣ LED 5 ΣΕ 1 ΜΕ ΥΠΟΣΤΗΡΙΞΗ SPI ΚΑΙ DMX, ΚΑΘΩΣ ΚΑΙ ΣΥΝΔΕΣΙΜΟΤΗΤΑ WIFI ΚΑΙ 2.4G. ΔΙΑΘΕΤΕΙ ΒΑΘΜΟ ΠΡΟΣΤΑΣΙΑΣ IP20 ΚΑΙ ΣΥΝΟΔΕΥΕΤΑΙ ΑΠΟ ΕΓΓΥΗΣΗ 5 ΕΤΩΝ.

SPIW5

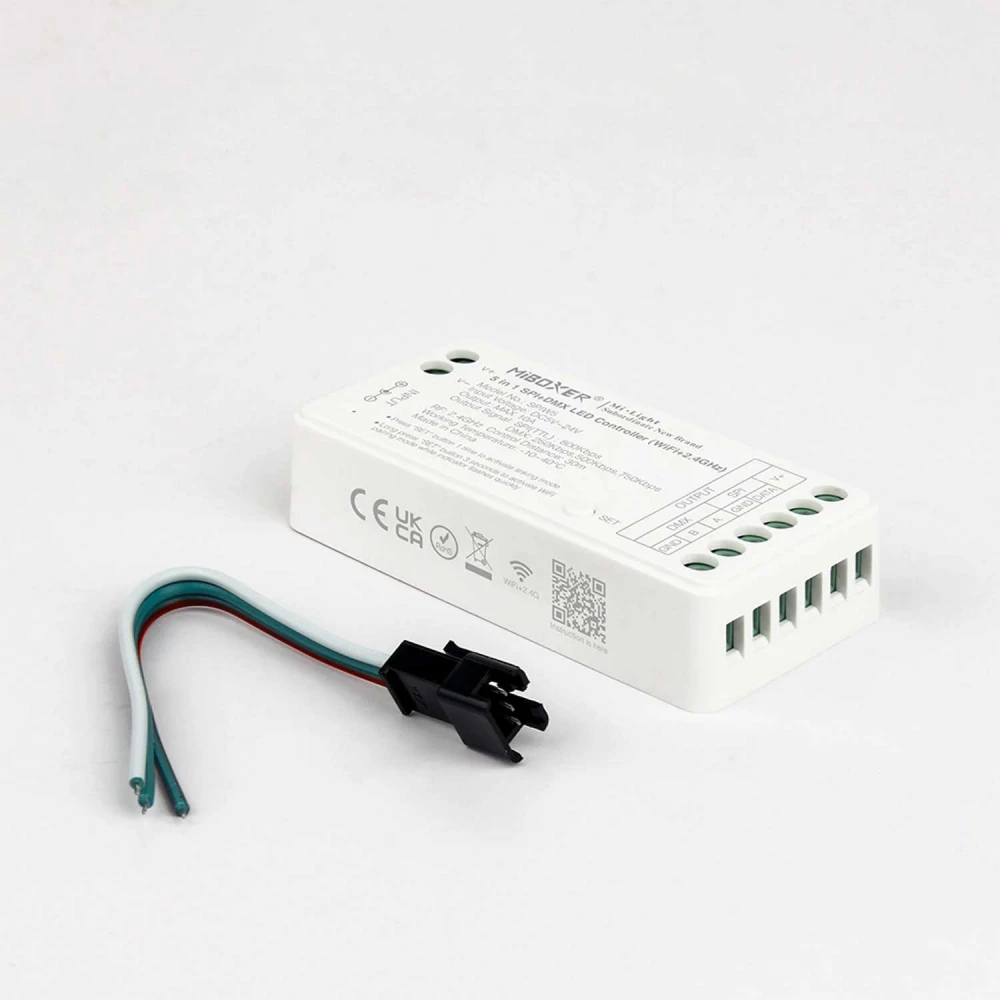

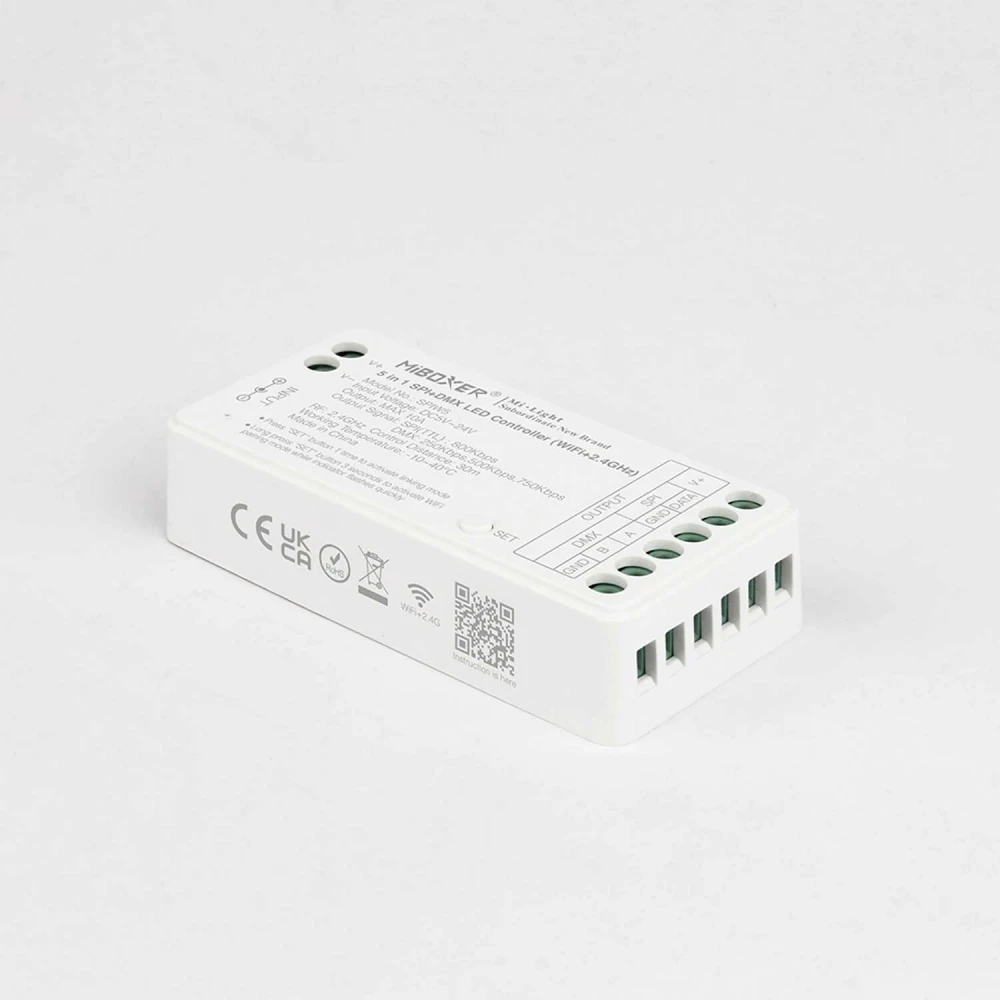

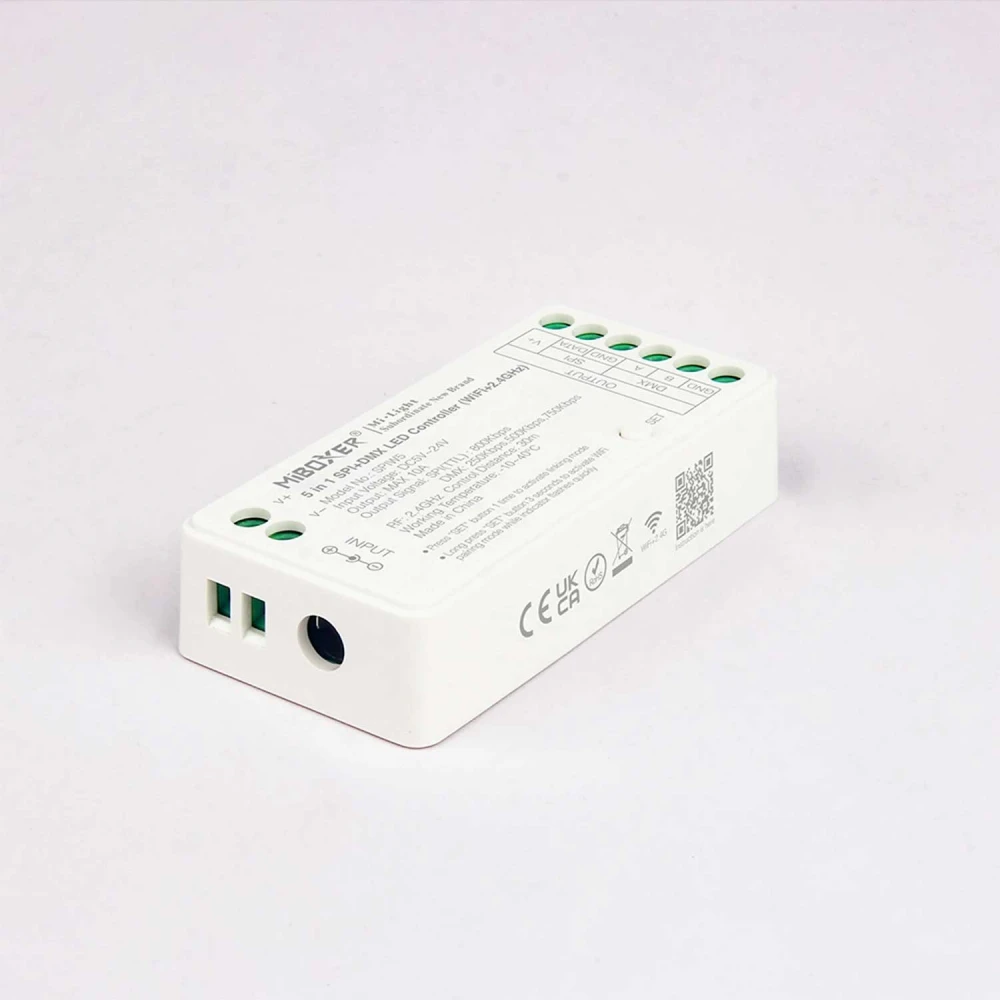

5 in 1 SPI+DMX LED Controller (WiFi+2.4G)

• Support WiFi+2.4G wireless transmitting technology

• Built in SPI/DMX dual communication protocol,

• Adjust different modes, color, brightness and change dynamic illumination

• Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps

Features

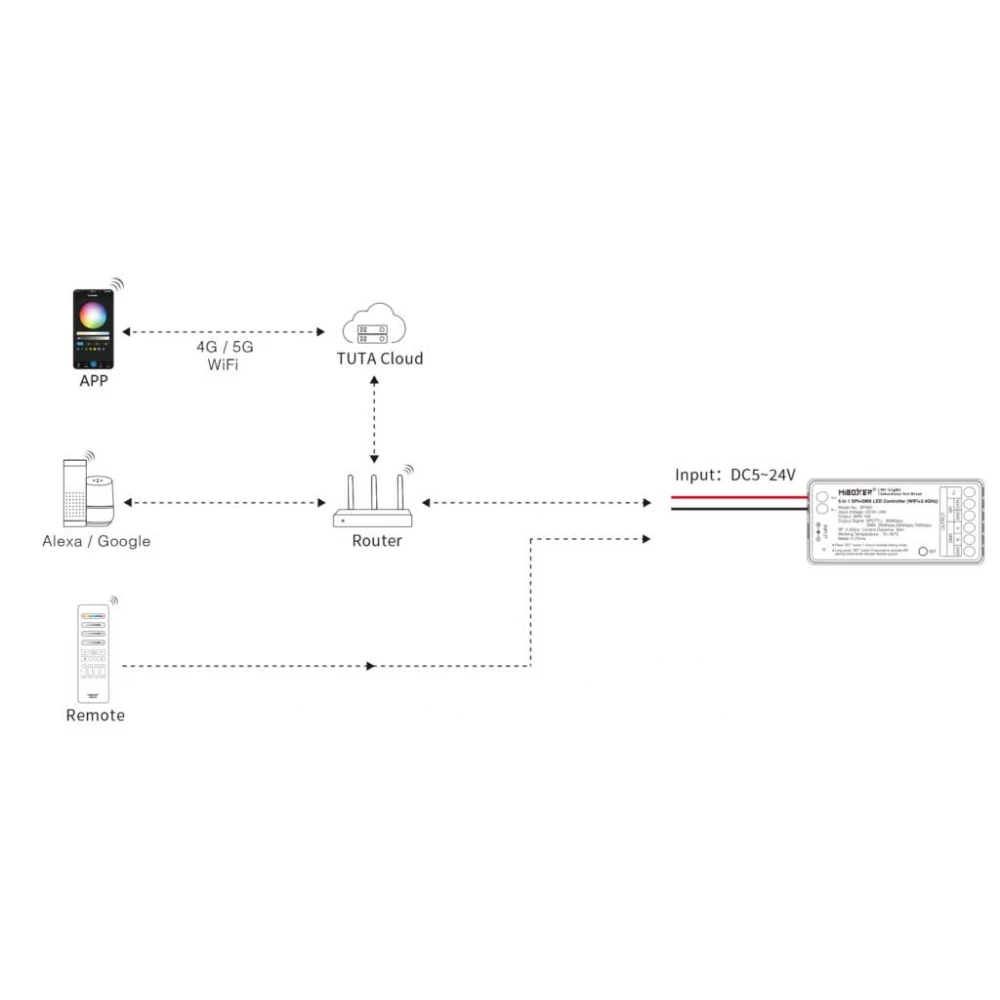

SPIW5 5 in 1 SPI+DMX WIFI+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it’s special controller for SPI LED strip light. The controller support WIFI+2.4G wireless transmitting technology Setting different features like adjust different modes, color, brightness and change dynamic illumination via TUYA SMART APP or C9, B9 remote.

5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT

Color, pixel points, speed, static mode and dynamic mode dimmable

Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.

8 kinds of music mode work with built-in microphone or smart phone microphone

Freely switching dynamic and music mode

Setting boot animation via TUYA SMART APP

Output signal : SPK(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps

Have DND mode, usually used for power failure area to save power

Compatible chips( controller don't need to set chip types)

TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)

Parameters

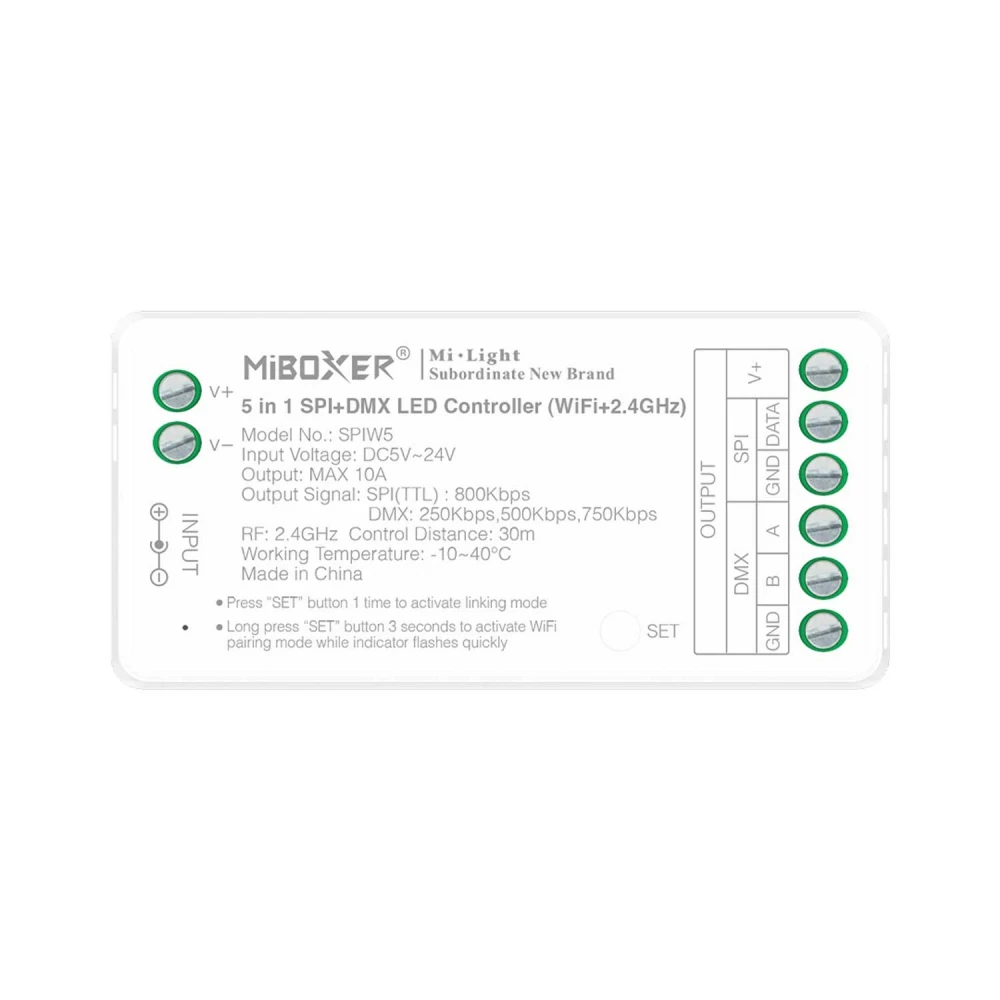

Product Name: 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)

Model No.: SPIW5

Input Voltage: DC5V~24V

Output Current: Max 10A

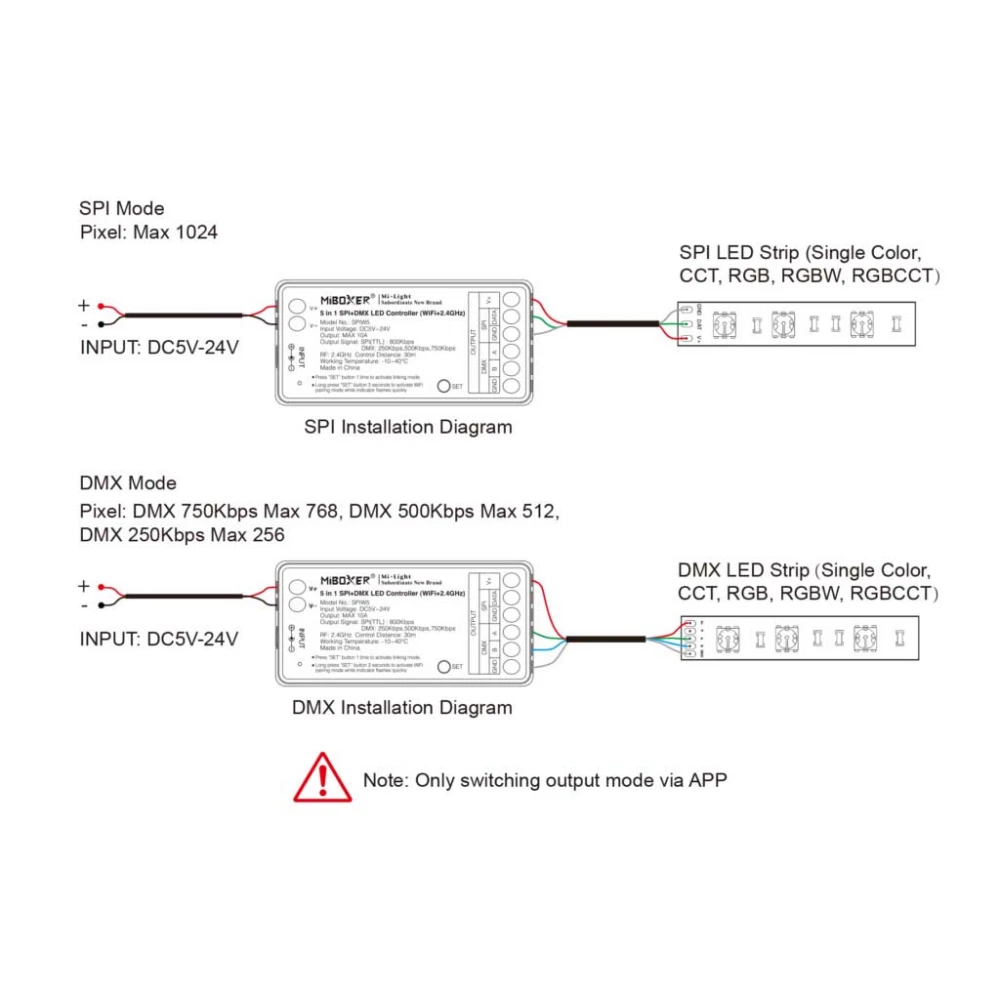

Output signal: SPI(TTL) 800Kbps (Max 1024 Pixel)

DMX: 250Kbps(Max 256 Pixel)

DMX: 500Kbps(Max 512 Pixel)

DMX: 750Kbps(Max 768 Pixel)

Standby current: 20mA

Protocol: WiFi + 2.4GHz RF

Control Distance: RF: 30m

IP Rate: IP20

Working Temperature: -10~40°C

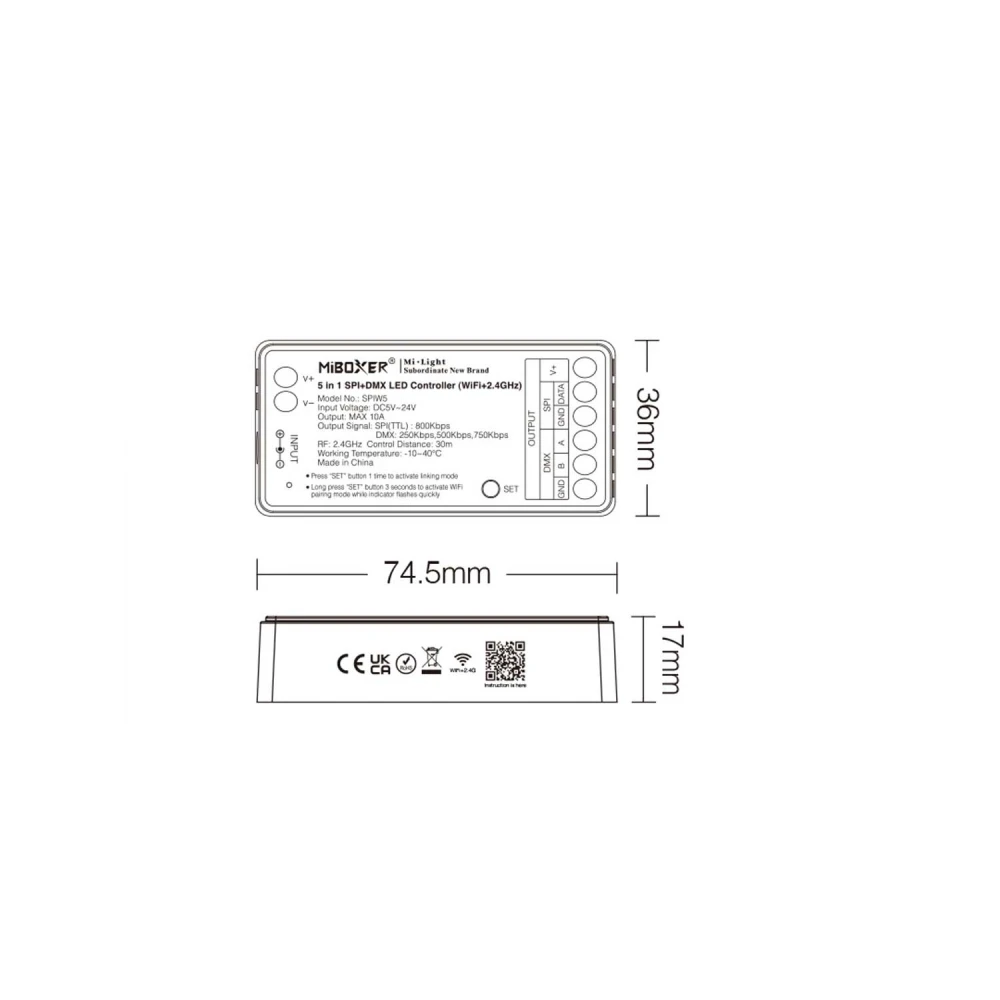

Dimension: 74.5*36*17mm

EMC Standard (EMC): ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-17 V3.2.4

Safety Standard (LVD): EN 62368-1; 2020+A11;2020

Radio Equipment (RED): ETSI EN 300 440 V2.2.1

Certification: CE, EMC, LVD, RED

Warranty: 5 Years
